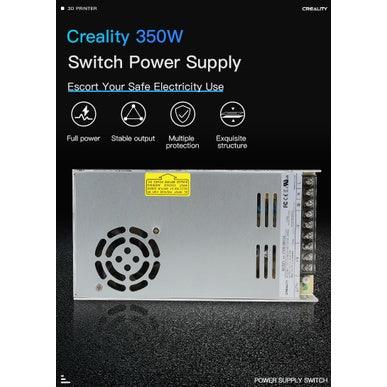

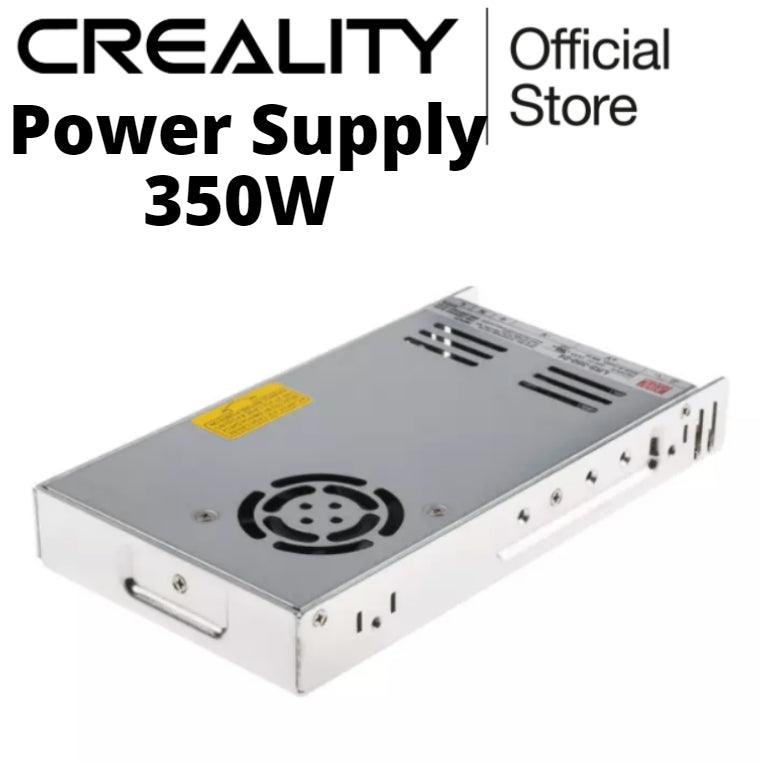

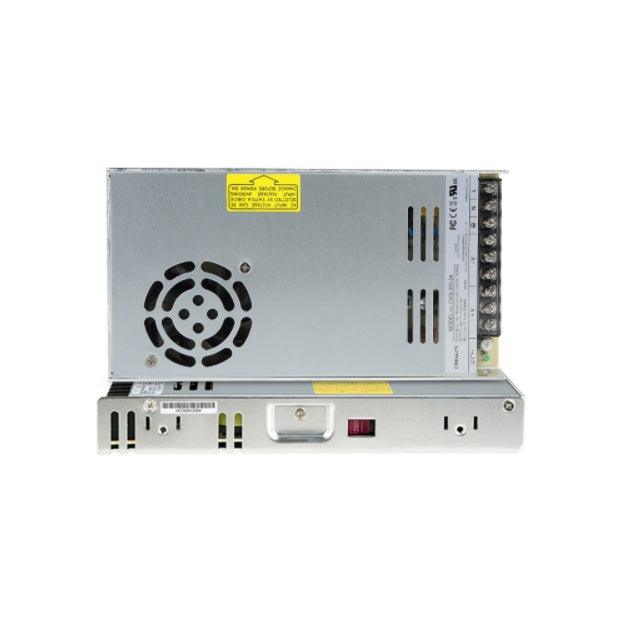

MEAN WELL LRS-350-24 Switching Power Supply 350W 24V 14.6A Meanwell Enclosed Metal Case suitable for Creality Ender 3 V2

MEAN WELL LRS-350-24 Switching Power Supply 350W 24V 14.6A Meanwell Enclosed Metal Case suitable for Creality Ender 3 V2

Regular price $61.90 SGD
Regular price $61.90 SGD Sale price $61.90 SGD
Sale Sold out
Shipping calculated at checkout.

Compatible model:Ender-3 Pro _Ender-3 V2_CR-6 SE_Ender-7_Ender-5 Pro_CR-5 Pro_CR-5 Pro H_SV05_SV01 Pro_CT-380_Ender-3 Max Neo_Ender-3 Neo_Ender-3 S1_Ender-3 S1 Pro_Ender-3 S1 PLUS


The LRS-350 series of single-output 350 W enclosed style power supply is a low profile, highly efficient enclosed product. The LRS-350 series has been designed for use within demanding applications, thanks to a metallic meshing & air convection to ensure optimum heat dissipation.





The LRS-350 series has been designed with efficiency in mind, delivering an extremely low no load power consumption. Installation into more testing environments can be done thanks to 5G anti-vibration capability.




Features and Benefits


Universal AC input / full range, with a 5 second 300 V ac surge input.

Up to 90% efficiency rating, with less than 0.5 W no load power consumption.

5G vibration resistance.

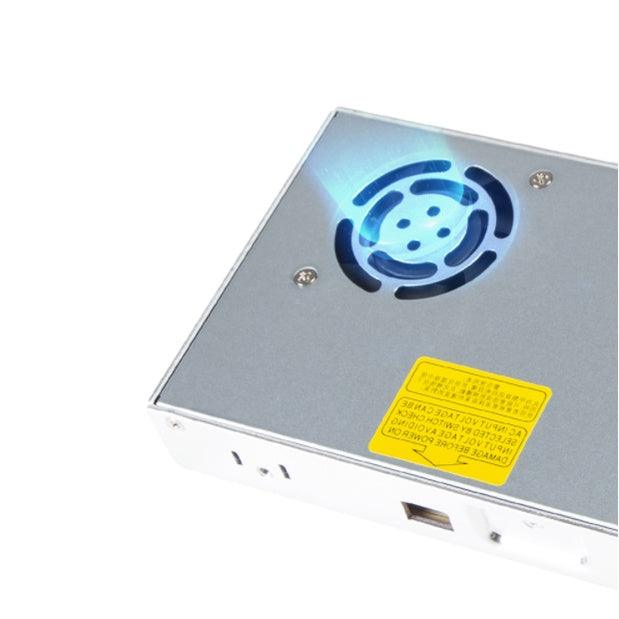

Free air convection cooling.

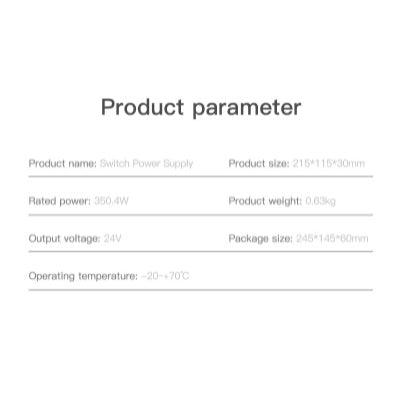

Specifiations


Output Voltage: 24V dc

Output Current: 14.6A

Power Rating: 350W

Number of Outputs: 1

Input Voltage: 180 → 264 (By Switch) V ac, 240 → 370 V dc, 90 → 132 V ac

Mounting Type: Chassis Mount

Package Type: Enclosed

Length: 215mm

Width: 115mm

Depth: 30mm

Weight: 760g

Efficiency: 88%

Maximum Temperature: +70°C

Minimum Temperature: -25°C
